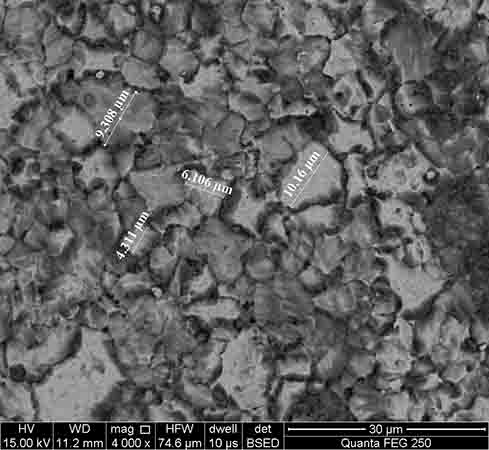

一种制备超细晶纯钼金属材料的活化烧结工艺，致密度，硬度。通过高能球磨制得钼粉末，细化钼粉颗粒，降低烧结活化能，使得在烧结时，能够以较低的烧结温度达到较高的致密度。采用单向液压压制粉末，压力为300 MPa，然后在1300℃~1600℃的氢气气氛炉中烧结，获得拥有高致密度的钼制品。

An activation sintering process for preparing ultrafine crystalline pure molybdenum metal materials, densities, and hardness. Molybdenum powder was produced by high-energy ball milling to refine the molybdenum powder particles and reduce the activation energy of sintering, enabling a higher dense density to be achieved at a lower sintering temperature during sintering. The powder is hydraulically pressed in one direction at a pressure of 300 MPa and then sintered in a hydrogen atmosphere furnace at 1300°C to 1600°C to obtain a molybdenum product with a high density.
