名称 : 分别添加1%La2O3和1%Mo2C后的高能球磨的钼粉性质。
英文名称 : Properties of Molybdenum powder in high-energy ball milling with 1%La2O3 and 1%Mo2C respectively.
材料 : 833
委托单位 : 中南大学
实验单位 : 中南大学
实验方法 : 常规测试方法
实验设备 : 场发射扫描电子显微镜
实验条件 : 常温常压
说明 :

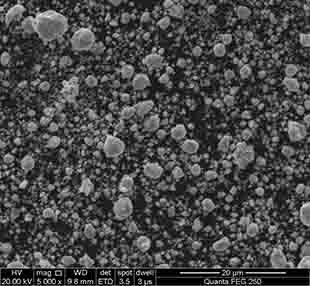

称取一定量的工业钼粉,分别加入1%La2O3和1%Mo2C,放入行星式球磨机中,在氩气保护下球磨24 h,每球磨1 h停机8~10 min,同时改变球磨机转动方向,球料比为10:1;球磨转速为350r/min,所得钼粉标记为Mo-1%La2O3-350r和Mo-1%Mo2C -350r。对球磨后钼粉使用XRD对粉末进行物相分析,步长8°/min,范围10~90°。将球磨后粉末加入含酒精的试管中超声震荡15min分散后,通过扫描电镜采集粉末形貌图像,并利用所采集的粉末SEM图像统计粉末粒径。

英文说明 :

A certain amount of industrial molybdenum powder was weighed and added to 1% La2O3 and 1% Mo2C, respectively, and put into a planetary ball mill and ball milled for 24 h under argon protection, with a stoppage of 8-10 min for each 1 h of ball milling, while changing the direction of ball mill rotation, with a ball-to-material ratio of 10:1; the ball milling speed was 350 r/min, and the resulting molybdenum powder was labeled as Mo-1% La2O3-350r and Mo-1% Mo2C-350r. The molybdenum powders were analyzed by XRD in steps of 8°/min and in the range of 10-90°. The powder was added to a test tube containing alcohol and dispersed by ultrasonic shaking for 15 min, and the powder morphology images were collected by scanning electron microscopy, and the powder particle size was counted using the collected powder SEM images.

数据来源 : 硕博士论文
附件下载
重点项目名称 : 大规格高性能难熔金属制品制备技术-难熔金属耐高温/耐冲击/耐磨损第二相设计理论及变形机理研究数据集
