名称 : 孔型轧制钼镧棒元素分析
英文名称 : Element analysis of lanthanum molybdenum bar in pass rolling
材料 : 833
委托单位 : 中南大学
实验单位 : 中南大学
实验方法 : 常规测试方法
实验设备 : 场发射扫描电子显微镜
实验条件 : 常温常压
说明 :

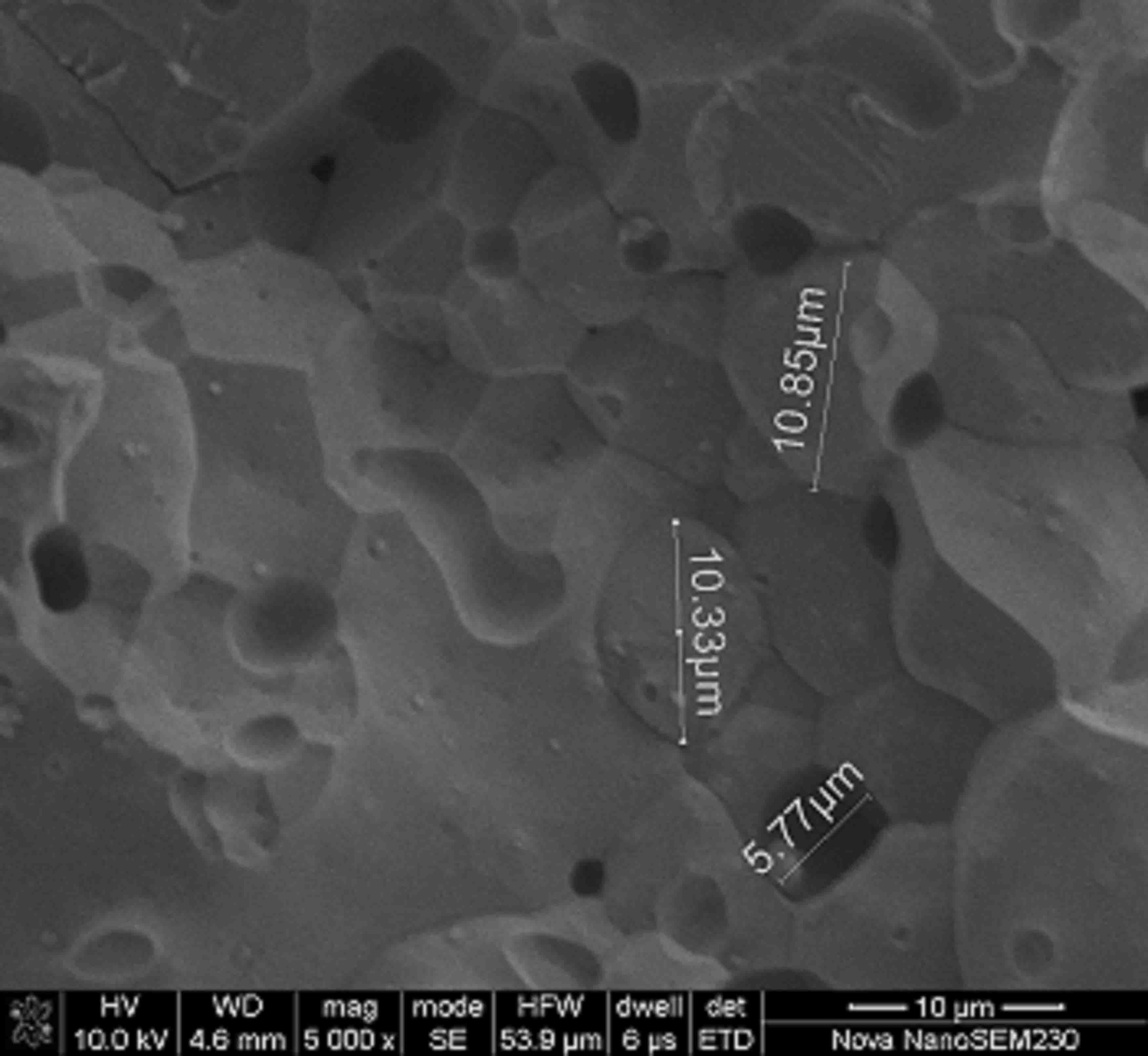

采用传统的氢气烧结粉末冶金法制备钼镧合金,按质量百分比在钼粉中加入1 % La2O3后,经混料机混合均匀,进行2t等静压压制,保压2 min,再进行1800 ℃氢气烧结,观察其金相组织。将坯料置于1450 ℃炉中保温15 min后进行轧制,随后逐步降温以控制晶粒长大。将锻造钼棒沿轴切成26mm长的骨头拉伸样,采用SEM(JSM-2100F)对拉伸断口进行扫描,EDS对试样的元素进行定性分析。XRD试验电压为40 KV,步长为8°/min,测试范围为10-90°。

英文说明 :

The molybdenum-lanthanum alloy was prepared by the conventional hydrogen sintering powder metallurgy method. After adding 1 % La2O3 to the molybdenum powder according to the mass percentage, the alloy was mixed well by a blender, isostatically pressed at 2 T, held for 2 min, and then hydrogen sintered at 1800 ℃ to observe its metallographic organization. The billet is rolled after being held in a furnace at 1450 ℃ for 15 min, followed by gradual temperature reduction to control grain growth. The forged molybdenum rod was cut into 26 mm long bone stretching samples along the axis, and the tensile fractures were scanned by SEM (JSM-2100F) and the elements of the specimens were analyzed qualitatively by EDS. The XRD test voltage was 40 KV, the step size was 8°/min, and the test range was 10-90°.


数据来源 : 硕博士论文
附件下载
重点项目名称 : 大规格高性能难熔金属制品制备技术-难熔金属耐高温/耐冲击/耐磨损第二相设计理论及变形机理研究数据集
