名称 : 模具钢首道次奥氏体化温度对晶粒尺寸和碳化物的影响规律
英文名称 : Effect of the first austenitizing temperature on grain size and carbide of die steel
材料 : 1418
委托单位 : 钢铁研究总院
实验单位 : 钢铁研究总院
实验方法 : 金相、晶粒度
实验设备 : Olympus GX53光学显微镜
实验条件 : 金相样品打磨抛光腐蚀

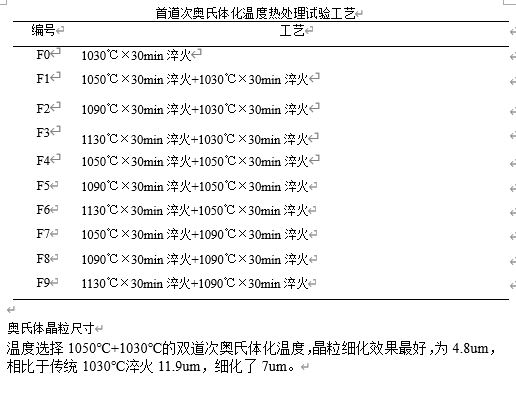

说明 : 温度选择1050℃+1030℃的双道次奥氏体化温度,晶粒细化效果最好,为4.8um,相比于传统1030℃淬火11.9um,细化了7um。
英文说明 : The double-pass austenitizing temperature of 1050 ℃+1030 ℃ is selected, and the grain refinement effect is the best, which is 4.8 um. Compared with 11.9 um of traditional 1030 ℃ quenching, the grain refinement is 7 um.
数据来源 : 分析测试报告
重点项目名称 : 高精度长寿命轴承、模具用钢基体强韧化热处理控制技术应用-高精度长寿命轴承、模具用钢基体强韧化、超细化热处理技术及机理
项目所属数据集 : 高精度长寿命轴承、模具用钢基体强韧化热处理控制技术应用-高精度长寿命轴承、模具用钢基体强韧化、超细化热处理技术及机理-数据集
